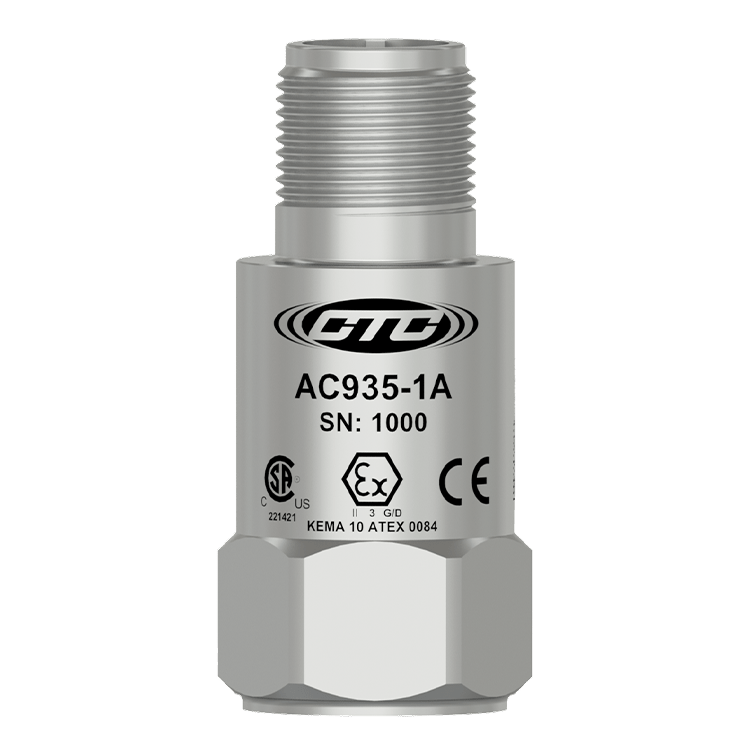

A stainless steel AC935 standard size class 1, division 2 / zone 2 top exit sensor engraved with the CTC line logo, product number, serial number, and hazardous area certification markings.

AC935

NONINCENDIVE, CSA NORTH AMERICA CLASS 1, DIVISION 2, ATEX ZONE 2, AND IECEX ZONE 2 APPROVED ACCELEROMETER, TOP EXIT 2 PIN CONNECTOR, 100 MV/G, ±10%
  • 30-900,000 CPM Frequency Response (±3dB)
  • -40 to 250 °F (-40 to 121 °C) Temperature Range
  • Welded, Hermetic Sealing
  • Approvals:
    CSA North America Class I, Division 2, Groups A, B, C, and D; Class II, Division 2, Groups F and G; Class III
    ATEX EU Zone 2 Approved
    IECEx Zone 2

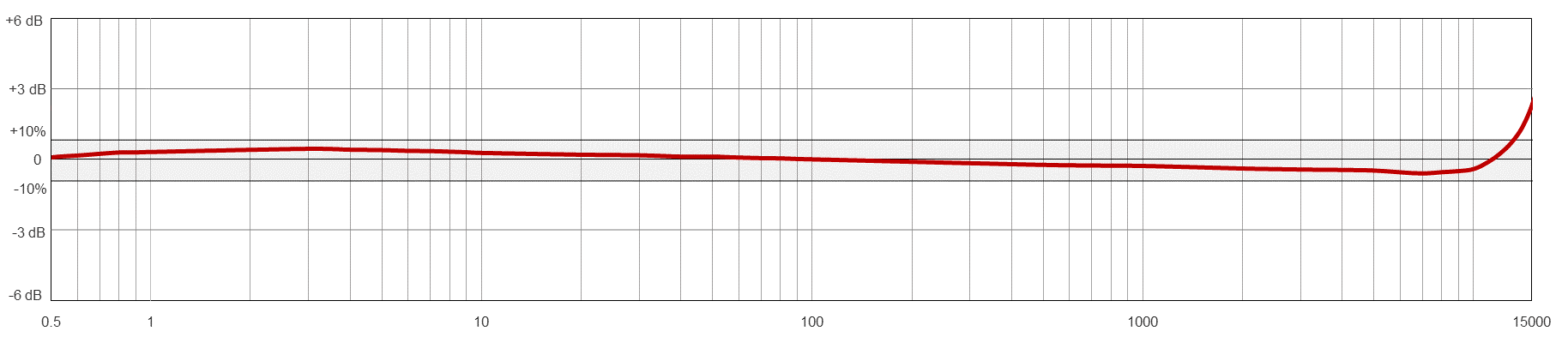

AC935 TYPICAL FREQUENCY RESPONSE

Frequency Response Image
