Q3A Series

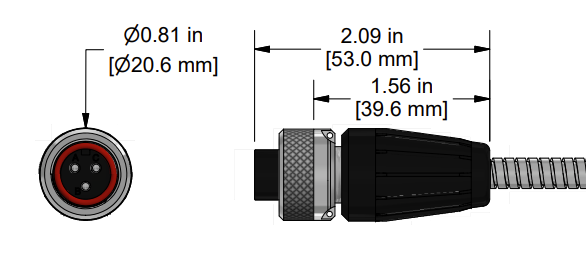

3 Socket MIL-Style Connector with Grounded Backshell for Class I, Division 2 Locations, Polycarbonate Molded, Permanent Measurements, 250 °F (121 °C) Max Temp
Product Features
Grounded Locking Ring for Class 1, Division 2 Installations
- 3 Socket Connection for use with CTC Dual Output Sensors
- Designed to Withstand a Wide Variety of Industrial Applications
- 316L Stainless Steel Locking Ring for Added Durability and Corrosion Resistance
| Specifications | |
|---|---|
| Application | Permanent Mount |
| Max Temperature | 250 °F (121 °C) |
| Connector Type | 3 Socket MIL-Style |
| Shell Material | Polycarbonate |
| Connector Insert Material | Polycarbonate |
| Rating | IP68 |
| Pin-Out | A = Signal (+) B = Common (-) C = Signal (+) |
